STT5NF30L N-CHANNEL POWER MOSFET

STT5NF30L Description

STT5NF30L N-CHANNEL 30V - 0.039Ω - 4A SOT23-6L STripFET™II POWER MOSFET TYPE VDSS RDS(on) STT5NF30L 30 V < 0.050 Ω (@ 10V) TYPICAL RDS(on) = 0.03.
This Power MOSFET is the second generation of STMicroelectronics unique “Single Feature Size™” strip-based process.

STT5NF30L Applications

* DC-DC CONVERTERS POWER MANAGEMENT IN PORTABLE/ DESKTOP PCs SYNCHRONOUS RECTIFICATION DC MOTOR CONTROL (DISK DRIVERS, etc) SOT23-6L INTERNAL SCHEMATIC DIAGRAM ORDERING INFORMATION SALES TYPE MARKING STT5NF30L STFN PACKAGE SOT23-6L PACKAGING TAPE & REEL March 2003 1/8 STT5NF30L ABSOLUTE MA

📥 Download Datasheet

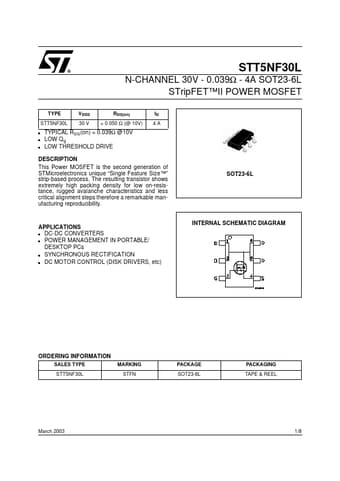

Preview of STT5NF30L PDF
