STT500GK08 - Thyristor-Thyristor Modules

Download the STT500GK08 datasheet PDF (STT500 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for thyristor-thyristor modules.

Features

  • International standard package.
  • Direct copper bonded Al2O3-ceramic with copper base plate.
  • Planar passivated chips.
  • Isolation voltage 3600 V~.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (STT500-Sirectifier.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number STT500GK08
Manufacturer Sirectifier
File Size 173.93 KB
Description Thyristor-Thyristor Modules
Datasheet download datasheet STT500GK08 Datasheet

📁 Similar Datasheet

  • STT5N2VH5 - N-channel MOSFET (STMicroelectronics)
  • STT5N320L - N-CHANNEL POWER MOSFET (ST Microelectronics)
  • STT5NF20V - N-CHANNEL POWER MOSFET (ST Microelectronics)
  • STT5NF30L - N-CHANNEL POWER MOSFET (STMicroelectronics)
  • STT5PF20V - P-CHANNEL POWER MOSFET (ST Microelectronics)
  • STT-104 - ENCAPSUALTED TRIGGER TRANSFORMER (ETC)
  • STT01L07 - N-Channel MOSFET (SamHop Microelectronics)
  • STT01L10 - N-Channel MOSFET (SamHop Microelectronics)
  • STT02N10 - N-Channel MOSFET (SamHop Microelectronics)
  • STT02N20 - N-Channel MOSFET (SamHop Microelectronics)
Other Datasheets by Sirectifier

Full PDF Text Transcription

Click to expand full text

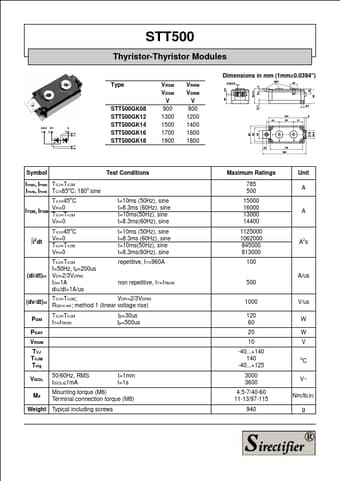

STT500 Thyristor-Thyristor Modules Type STT500GK08 STT500GK12 STT500GK14 STT500GK16 STT500GK18 VRSM VDSM V 900 1300 1500 1700 1900 VRRM VDRM V 800 1200 1400 1600 1800 Dimensions in mm (1mm=0.0394") Symbol Test Conditions I , ITRMS FRMS TVJ=TVJM I , ITAVM FAVM TC=85oC; 180o sine TVJ=45oC ITSM, IFSM VR=0 TVJ=TVJM VR=0 TVJ=45oC i2dt VR=0 TVJ=TVJM VR=0 t=10ms (50Hz), sine t=8.3ms (60Hz), sine t=10ms(50Hz), sine t=8.3ms(60Hz), sine t=10ms (50Hz), sine t=8.3ms (60Hz), sine t=10ms(50Hz), sine t=8.
