STT3P2UH7 P-CHANNEL POWER MOSFET

STT3P2UH7 Description

STT3P2UH7 P-channel 20 V, 0.087 Ω typ., 3 A STripFET™ H7 Power MOSFET in a SOT23-6L package Datasheet - production data SOT23-6L Figure 1: Internal .
This P-channel Power MOSFET utilizes the STripFET H7 technology with a trench gate structure combined with extremely low onresistance.

STT3P2UH7 Features

* Order code STT3P2UH7 VDS 20 V RDS(on) max 0.1 Ω @ 4.5 ID 3A
* Very low on-resistance
* Very low capacitance and gate charge

📥 Download Datasheet

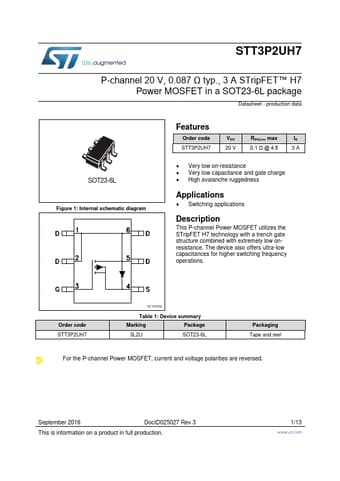

Preview of STT3P2UH7 PDF
datasheet Preview Page 2 datasheet Preview Page 3
