STT1NF100 N-CHANNEL MOSFET

STT1NF100 Description

STT1NF100 N-CHANNEL 100V - 0.7Ω - 1A SOT23-6L STripFET™ II POWER MOSFET PRELIMINARY DATA TYPE STT1NF100 s s s VDSS 100V RDS(on) <0.8Ω ID 1A TYPICA.
This Power MOSFET is the latest development of STMicroelectronics unique “Single Feature Size™” stripbased process.

STT1NF100 Applications

* s DC-DC & DC-AC CONVERTERS s DC MOTOR CONTROL (DISK DRIVES, etc. ) s SYNCHRONOUS RECTIFICATION s MARKING STQ0 ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID ID IDM ( ) PTOT dv/dt(1) Tstg Tj Parameter Drain-source Voltage (VGS = 0) Drain-gate Voltage (RGS = 20 kΩ) Gate- source Voltage Drain Curren

📥 Download Datasheet

Preview of STT1NF100 PDF

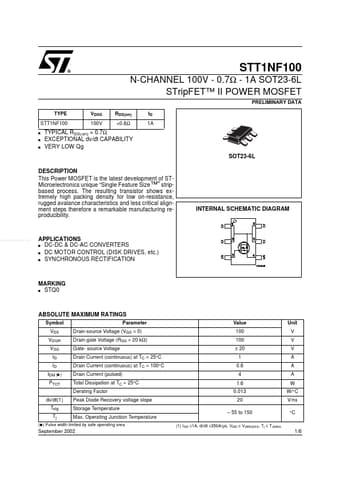

datasheet Preview Page 2 datasheet Preview Page 3
