STS8DN3LLH5 - Power MOSFETs

Description

This STripFET™V Power MOSFET technology is among the latest improvements, which have been especially tailored to achieve very low on-state resistance providing also one of the best-in-class FOM.

Table 1.

Features

  • Type STS8DN3LLH5 VDSS 30 V RDS(on) max < 0.019 Ω ID 10 A (1) 1. The value is rated according Rthj-pcb.
  • RDS(on).
  • Qg industry benchmark Extremely low on-resistance RDS(on) Very low switching gate charge High avalanche ruggedness Low gate drive power losses SO-8.

📥 Download Datasheet

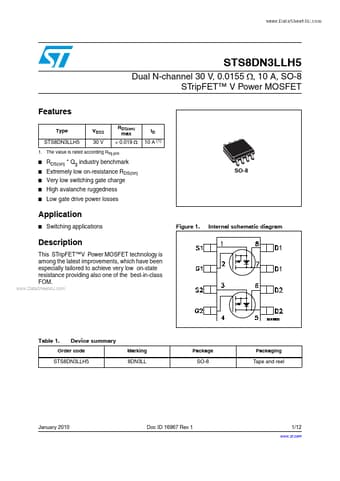

Datasheet preview – STS8DN3LLH5

📁 Similar Datasheet

  • STS8DNF3LL - Dual N-Channel 30V Power MOSFET (ST Microelectronics)
  • STS8DNH3LL - Dual N-CHANNEL Power MOSFET (ST Microelectronics)
  • STS8050 - NPN Silicon Transistor (AUK)
  • STS8201 - Dual N-Channel E nhancement Mode Field Effect Transistor (SamHop Microelectronics)
  • STS8202 - Dual N-Channel MOSFET (SamHop Microelectronics)
  • STS8205 - Dual N-Channel E nhancement Mode Field Effect Transistor (SamHop Microelectronics)
  • STS8207 - Dual N-Channel MOSFET (SamHop Microelectronics)
  • STS8208 - Dual N-Channel E nhancement Mode Field Effect Transistor (SamHop Microelectronics)
  • STS8212 - Dual N-Channel Enhancement Mode Field Effect Transistor (SamHop)
  • STS8213 - Dual N-Channel Enhancement Mode Field Effect Transistor (SamHop)
Other Datasheets by STMicroelectronics

Full PDF Text Transcription

Click to expand full text
STS8DN3LLH5 Dual N-channel 30 V, 0.0155 Ω, 10 A, SO-8 STripFET™ V Power MOSFET Features Type STS8DN3LLH5 VDSS 30 V RDS(on) max < 0.019 Ω ID 10 A (1) 1. The value is rated according Rthj-pcb ■ ■ ■ ■ ■ RDS(on) * Qg industry benchmark Extremely low on-resistance RDS(on) Very low switching gate charge High avalanche ruggedness Low gate drive power losses SO-8 Application ■ Switching applications Figure 1. Internal schematic diagram Description This STripFET™V Power MOSFET technology is among the latest improvements, which have been especially tailored to achieve very low on-state resistance providing also one of the best-in-class FOM. www.DataSheet4U.com Table 1.
