STS6DNF30V, DUAL N - CHANNEL POWER MOSFET

DUAL N-CHANNEL 30V - 0.026Ω - 6A SO-8 2.5V-DRIVE STripFET™ II POWER MOSFET TYPE STS6DNF30V www.DataSheet4U.com s s s s STS6DNF30V VDSS 30 V RDS(on).
This Power MOSFET is the latest development of STMicroelectronics unique “Single Feature Size ™” strip-based process.

STS6DNF30V_STMicroelectronics.pdf

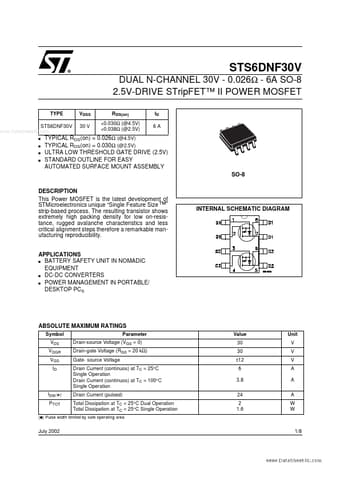

STS6DNF30V Datasheet Preview — Preview of STS6DNF30V PDF

Datasheet Details

Part number:

STS6DNF30V

Manufacturer:

STMicroelectronics ↗

File Size:

216.62 KB

Description:

DUAL N - CHANNEL POWER MOSFET

Applications

* s BATTERY SAFETY UNIT IN NOMADIC EQUIPMENT s DC-DC CONVERTERS s POWER MANAGEMENT IN PORTABLE/ DESKTOP PCS ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID Parameter Drain-source Voltage (VGS = 0) Drain-gate Voltage (RGS = 20 kΩ) Gate- source Voltage Drain Current (continuos) at TC = 25°C Single Oper
