STS6DNF30L, DUAL N - CHANNEL POWER MOSFET

® STS6DNF30L DUAL N - CHANNEL 30V - 0.022Ω - 6A SO-8 STripFET™ POWER MOSFET TYPE STS6DNF30L s V DSS 30 V R DS(on) < 0.025 Ω ID 6 A www.DataSheet.
This Power MOSFET is the second generation of STMicroelectronics unique ” Single Feature Size™ ” strip-based process.

STS6DNF30L_STMicroelectronics.pdf

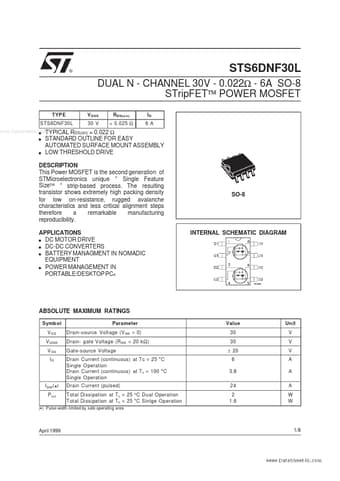

STS6DNF30L Datasheet Preview — Preview of STS6DNF30L PDF

Datasheet Details

Part number:

STS6DNF30L

Manufacturer:

STMicroelectronics ↗

File Size:

116.01 KB

Description:

DUAL N - CHANNEL POWER MOSFET

Applications

* s DC MOTOR DRIVE s DC-DC CONVERTERS s BATTERY MANAGMENT IN NOMADIC EQUIPMENT s POWER MANAGEMENT IN PORTABLE/DESKTOP PCs SO-8 INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symb ol V DS V DGR V GS ID Parameter Drain-source Voltage (V GS = 0) Drain- gate Voltage (R GS = 20 k Ω) G ate-source Vo
