STPS30L30C Low drop power Schottky rectifier

STPS30L30C Description

STPS30L30C Low drop power Schottky rectifier .
This dual center tap Schottky rectifier is suited for switch mode power supplies and high frequency DC to DC converters.

STPS30L30C Features

* Very small conduction losses
* Negligible switching losses
* Extremely fast switching
* Low forward voltage drop
* Low thermal resistance

STPS30L30C Applications

* Table 1. Device summary IF(AV) VRRM Tj (max) VF(typ) 2 x 15 A 30 V 150 °C 0.37 V A1 A2 K A2 A1 K TO-220AB STPS30L30CT K K A2 A1 D2PAK STPS30L30CG A2 A1 K I2PAK STPS30L30CR Figure 1. Electrical characteristics (a) VI "Forward" I 2 x IO X VRRM VAR VR IF IO IR X V "Reverse" VTo VF(Io) V

📥 Download Datasheet

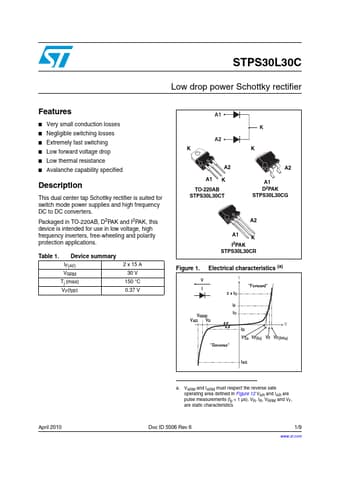

Preview of STPS30L30C PDF
