STPS30L30CR, STPS30L30CT, Low drop power Schottky rectifier

STPS30L30C Low drop power Schottky rectifier .
This dual center tap Schottky rectifier is suited for switch mode power supplies and high frequency DC to DC converters.

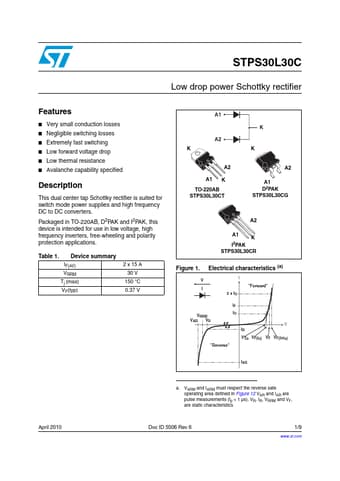

STPS30L30CT_STMicroelectronics.pdf

STPS30L30CR Datasheet Preview — This datasheet PDF includes multiple part numbers: STPS30L30CR, STPS30L30CT. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

STPS30L30CR, STPS30L30CT

Manufacturer:

STMicroelectronics ↗

File Size:

107.88 KB

Description:

Low drop power Schottky rectifier

Note:

This datasheet PDF includes multiple part numbers: STPS30L30CR, STPS30L30CT.
Please refer to the document for exact specifications by model.

Features

* Very small conduction losses
* Negligible switching losses
* Extremely fast switching
* Low forward voltage drop
* Low thermal resistance

Applications

* Table 1. Device summary IF(AV) VRRM Tj (max) VF(typ) 2 x 15 A 30 V 150 °C 0.37 V A1 A2 K A2 A1 K TO-220AB STPS30L30CT K K A2 A1 D2PAK STPS30L30CG A2 A1 K I2PAK STPS30L30CR Figure 1. Electrical characteristics (a) V I "Forward" I 2 x IO X VRRM VAR VR IF IO IR X V "Reverse" VTo VF
