STPS30L120C Power Schottky rectifier

STPS30L120C Description

STPS30L120C Datasheet 120 V power Schottky rectifier A1 K A2 K A2 A1 K TO-220AB K A2 K A1 TO-220FPAB A2 I²PAK K A1 Product status link STPS30L.
This dual center tap Schottky rectifier is optimized for high frequency switch mode power supplies.

STPS30L120C Features

* High junction temperature capability
* Avalanche capability specified
* Low forward voltage drop current
* High frequency operation
* Insulated package: TO-220FPAB
* Insulating voltage = 1500 VRMS

STPS30L120C Applications

* Switching diode
* SMPS
* DC/DC converter
* LED lighting

📥 Download Datasheet

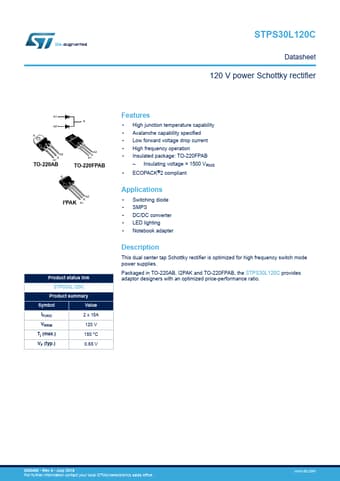

Preview of STPS30L120C PDF
datasheet Preview Page 2 datasheet Preview Page 3
