STPS30L45C - Low drop power Schottky rectifier

This page provides the datasheet information for the STPS30L45C, a member of the STPS30L45CG Low drop power Schottky rectifier family.

Description

Dual center tap Schottky rectifier suited for switched mode power supplies and high frequency DC to DC converters.

Packaged in TO-247, TO-220AB, TO-220FPAB, D2PAK and I2PAK this device is intended for use in low voltage, high frequency inverters, free wheeling and polarity protection applications.

Features

  • low forward voltage drop meaning very small conduction losses.
  • low switching losses allowing high frequency operation.
  • low thermal resistance.
  • avalanche rated.
  • insulated package TO-220FPAB:.
  • insulating voltage = 2000 V DC.
  • capacitance = 45 pF.
  • avalanche capability specified.

📥 Download Datasheet

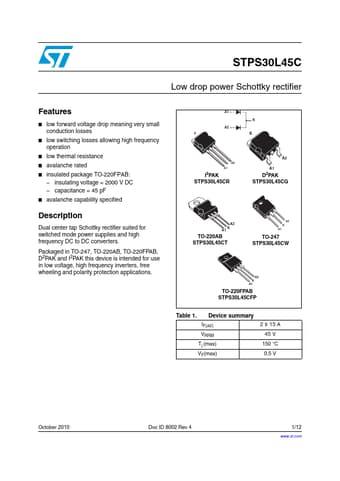

Datasheet preview – STPS30L45C
