STPS3030, STPS3030CT, Low drop power Schottky rectifier

STPS3030/CT/CG/CR Low drop power Schottky rectifier Main product characteristics IF(AV) VRRM Tj (max) VF(max) 2 x 15 A 30 V 150° C 0.42 V .
Dual Schottky rectifier suited for switch mode power supply and high frequency DC to DC converters.

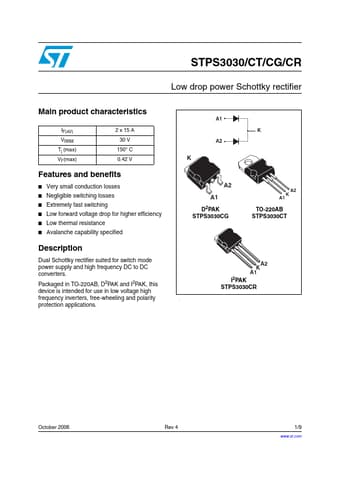

STPS3030CT_STMicroelectronics.pdf

STPS3030 Datasheet Preview — This datasheet PDF includes multiple part numbers: STPS3030, STPS3030CT. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

STPS3030, STPS3030CT

Manufacturer:

STMicroelectronics ↗

File Size:

110.65 KB

Description:

Low drop power Schottky rectifier

Note:

This datasheet PDF includes multiple part numbers: STPS3030, STPS3030CT.
Please refer to the document for exact specifications by model.

Features

* Very small conduction losses
* Negligible switching losses
* Extremely fast switching
* Low forward voltage drop for higher efficiency
* Low thermal resistance

Applications

* A1 A2 K K A2 A1 D2PAK STPS3030CG A2 K A1 TO-220AB STPS3030CT A2 K A1 I2PAK STPS3030CR j October 2006 Rev 4 1/9 www. st. com 9 Characteristics 1 Characteristics STPS3030CT/CG/CR Table 1. Absolute ratings (limiting values, per diode) Symbol Parameter Value Unit VRRM IF(RMS) Repetitive
