STPS3030CR, STPS3030CT Low drop power Schottky rectifier

STPS3030CR Description

STPS3030/CT/CG/CR Low drop power Schottky rectifier Main product characteristics IF(AV) VRRM Tj (max) VF(max) 2 x 15 A 30 V 150° C 0.42 V .
Dual Schottky rectifier suited for switch mode power supply and high frequency DC to DC converters.

STPS3030CR Features

* Very small conduction losses
* Negligible switching losses
* Extremely fast switching
* Low forward voltage drop for higher efficiency
* Low thermal resistance

STPS3030CR Applications

* A1 A2 K K A2 A1 D2PAK STPS3030CG A2 K A1 TO-220AB STPS3030CT A2 K A1 I2PAK STPS3030CR j October 2006 Rev 4 1/9 www. st. com 9 Characteristics 1 Characteristics STPS3030CT/CG/CR Table 1. Absolute ratings (limiting values, per diode) Symbol Parameter Value Unit VRRM IF(RMS) Repetitive

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STPS3030CR, STPS3030CT. Please refer to the document for exact specifications by model.

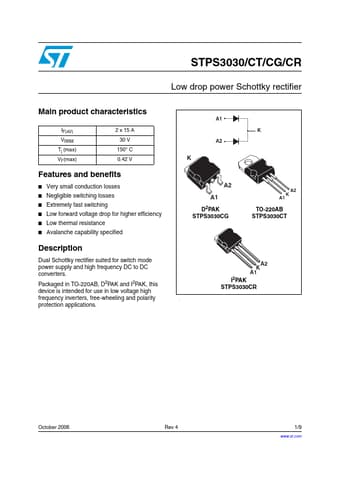

datasheet Preview Page 2 datasheet Preview Page 3
