STPS3030CT, Low drop power Schottky rectifier

STPS3030/CT/CG/CR Low drop power Schottky rectifier Main product characteristics IF(AV) VRRM Tj (max) VF(max) 2 x 15 A 30 V 150° C 0.42 V .
Dual Schottky rectifier suited for switch mode power supply and high frequency DC to DC converters.

STPS3030CT_STMicroelectronics.pdf

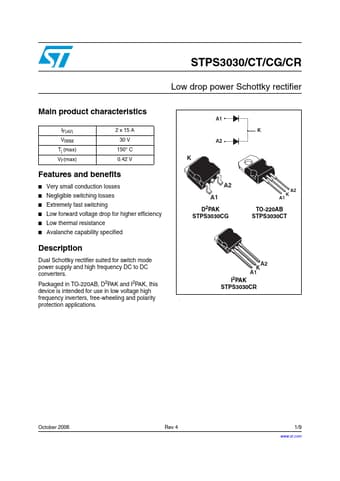

STPS3030CT Datasheet Preview — Preview of STPS3030CT PDF

Datasheet Details

Part number:

STPS3030CT

Manufacturer:

STMicroelectronics ↗

File Size:

110.65 KB

Description:

Low drop power Schottky rectifier

Features

* Very small conduction losses
* Negligible switching losses
* Extremely fast switching
* Low forward voltage drop for higher efficiency
* Low thermal resistance

Applications

* A1 A2 K K A2 A1 D2PAK STPS3030CG A2 K A1 TO-220AB STPS3030CT A2 K A1 I2PAK STPS3030CR j October 2006 Rev 4 1/9 www. st. com 9 Characteristics 1 Characteristics STPS3030CT/CG/CR Table 1. Absolute ratings (limiting values, per diode) Symbol Parameter Value Unit VRRM IF(RMS) Repetitive
