STPS30170CG, STPS30170C High Voltage Power Schottky Rectifier

STPS30170CG Description

STPS30170C High voltage power Schottky rectifier Datasheet - production data A1 K A2 TO-247 A2 K A1 K K A2 A1 D2PAK A2 A1 .
Dual center tap Schottky rectifier designed for high frequency switch mode power supply.

STPS30170CG Features

* High junction temperature capability
* Good trade off between leakage current and forward voltage drop
* Low leakage current
* Avalanche capability specified

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STPS30170CG, STPS30170C. Please refer to the document for exact specifications by model.

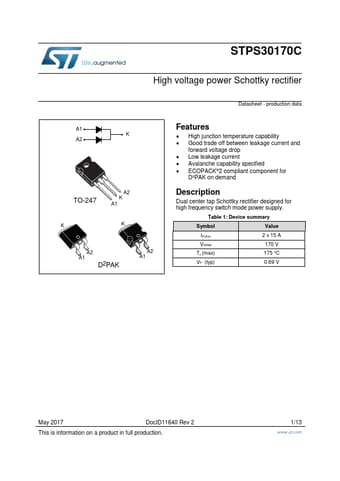

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STPS30170CG, STPS30170C
Manufacturer
STMicroelectronics ↗
File Size
485.52 KB
Datasheet
STPS30170C_STMicroelectronics.pdf
Description
High Voltage Power Schottky Rectifier
Note
This datasheet PDF includes multiple part numbers: STPS30170CG, STPS30170C.
Please refer to the document for exact specifications by model.
