STPS2545CTY, STPS2545CT-Y Automotive power Schottky rectifier

STPS2545CTY Description

STPS2545CT-Y Automotive power Schottky rectifier .
Dual center tab Schottky rectifier suited for switch mode power supplies and high frequency DC to DC converters.

STPS2545CTY Features

* Very small conduction losses
* Negligible switching losses
* Extremely fast switching
* Low thermal resistance
* Avalanche capability specified

STPS2545CTY Applications

* Datasheet
* production data A1 K A2 A2 A1 K TO-220AB Table 1. Device summary Symbol Value IF(AV) VRRM Tj (max) VF(max) 2 x 12.5 A 45 V 175 °C 0.57 V June 2012 This is information on a product in full production. Doc ID 18183 Rev 2 1/7 www. st. com 7 Characteristics 1 Characteri

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STPS2545CTY, STPS2545CT-Y. Please refer to the document for exact specifications by model.

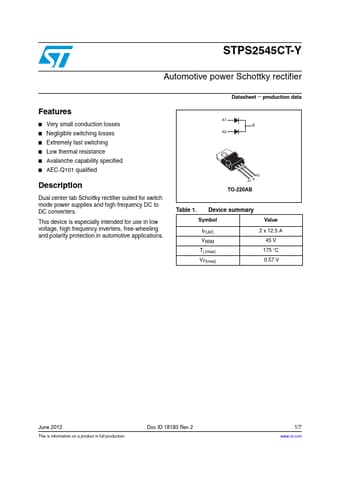

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STPS2545CTY, STPS2545CT-Y
Manufacturer
STMicroelectronics ↗
File Size
140.07 KB
Datasheet
STPS2545CT-Y-STMicroelectronics.pdf
Description
Automotive power Schottky rectifier
Note
This datasheet PDF includes multiple part numbers: STPS2545CTY, STPS2545CT-Y.
Please refer to the document for exact specifications by model.
