STPS20150C - High voltage power Schottky rectifier

Description

Dual center tap Schottky rectifier designed for high frequency switch mode power supplies.

Features

  • High junction temperature capability.
  • Good trade off between leakage current and forward voltage drop.
  • Low leakage current.
  • Avalanche capability specified.
  • Insulated package: TO-220FPAB.
  • Insulating voltage = 2000 VRMS sine.

📥 Download Datasheet

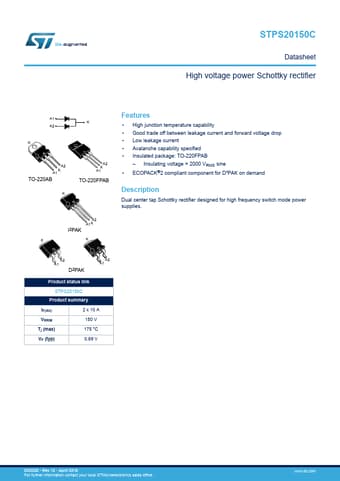

Datasheet preview – STPS20150C

Datasheet Details

Part number STPS20150C
Manufacturer STMicroelectronics
File Size 289.54 KB
Description High voltage power Schottky rectifier
Datasheet download datasheet STPS20150C Datasheet
Additional preview pages of the STPS20150C datasheet.

📁 Similar Datasheet

  • STPS20150CFP - High voltage power Schottky rectifier (STMicroelectronics)
  • STPS20150CG - High voltage power Schottky rectifier (STMicroelectronics)
  • STPS20150CR - High voltage power Schottky rectifier (STMicroelectronics)
  • STPS20150CT - High voltage power Schottky rectifier (STMicroelectronics)
  • STPS20100CT - Schottky Barrier Rectifier (INCHANGE)
  • STPS20120C - power Schottky rectifier (STMicroelectronics)
  • STPS20120CR - power Schottky rectifier (STMicroelectronics)
  • STPS20120CT - Schottky Barrier Rectifier (INCHANGE)
  • STPS20120CT - power Schottky rectifier (STMicroelectronics)
  • STPS20120CTN - power Schottky rectifier (STMicroelectronics)
Other Datasheets by ST Microelectronics

Full PDF Text Transcription

Click to expand full text
STPS20150C Datasheet High voltage power Schottky rectifier A1 K A2 K A2 A1 K TO-220AB K A2 K A1 TO-220FPAB A2 A1 K I2PAK K K Features • High junction temperature capability • Good trade off between leakage current and forward voltage drop • Low leakage current • Avalanche capability specified • Insulated package: TO-220FPAB – Insulating voltage = 2000 VRMS sine • ECOPACK®2 compliant component for D²PAK on demand Description Dual center tap Schottky rectifier designed for high frequency switch mode power supplies. A2 A1 D2PAK A2 A1 Product status link STPS20150C Product summary IF(AV) 2 x 10 A VRRM 150 V Tj (max) 175 °C VF (typ) 0.69 V DS2252 - Rev 12 - April 2018 For further information contact your local STMicroelectronics sales office. www.st.
