STPS2545CFP POWER SCHOTTKY RECTIFIER

STPS2545CFP Description

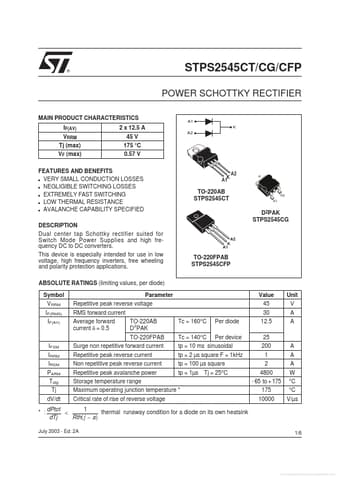

® STPS2545CT/CG/CFP POWER SCHOTTKY RECTIFIER MAIN PRODUCT CHARACTERISTICS IF(AV) VRRM Tj (max) VF (max) 2 x 12.5 A 45 V 175 °C 0.57 V A1 K A2 FEAT.
Dual center tap Schottky rectifier suited for Switch Mode Power Supplies and high frequency DC to DC converters.

STPS2545CFP Applications

* ABSOLUTE RATINGS (limiting values, per diode) Symbol VRRM IF(RMS) IF(AV) RMS forward current Average forward current δ = 0.5 TO-220AB D2PAK TO-220FPAB IFSM IRRM IRSM PARM Tstg Tj dV/dt
* : Surge non repetitive forward current Repetitive peak reverse current Non repetitive peak reverse current R
