STPS2545CGY, STPS2545C-Y Automotive power Schottky rectifier

STPS2545CGY Description

A1 A2 K K A2 A1 D²PAK .
Dual center tap Schottky rectifier suited for switch mode power supply and high frequency DC to DC converters.

STPS2545CGY Features

* AEC-Q101 qualified
* Very small conduction losses
* Negligible switching losses
* Extremely fast switching
* Low thermal resistance
* Avalanche capability specified
* PPAP capable STPS2545C-Y Automotive power Schottky rectifier Datasheet - production data Descriptio

STPS2545CGY Applications

* Table 1: Device summary Symbol Value IF(AV) 2 x 12.5 A VRRM 45 V VF (typ. ) Tj (max. ) 0.5 V 175 °C October 2016 DocID17260 Rev 3 This is information on a product in full production. 1/10 www. st. com Characteristics STPS2545C-Y 1 Characteristics Table 2: Absolute ratings (limiting va

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STPS2545CGY, STPS2545C-Y. Please refer to the document for exact specifications by model.

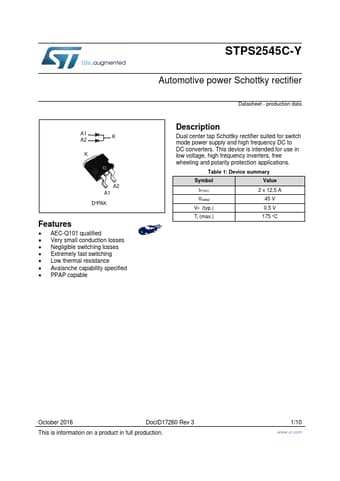

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STPS2545CGY, STPS2545C-Y
Manufacturer
STMicroelectronics ↗
File Size
345.36 KB
Datasheet
STPS2545C-Y_STMicroelectronics.pdf
Description
Automotive power Schottky rectifier
Note
This datasheet PDF includes multiple part numbers: STPS2545CGY, STPS2545C-Y.
Please refer to the document for exact specifications by model.
