STPS2545C-Y, Automotive power Schottky rectifier

A1 A2 K K A2 A1 D²PAK .
Dual center tap Schottky rectifier suited for switch mode power supply and high frequency DC to DC converters.

STPS2545C-Y_STMicroelectronics.pdf

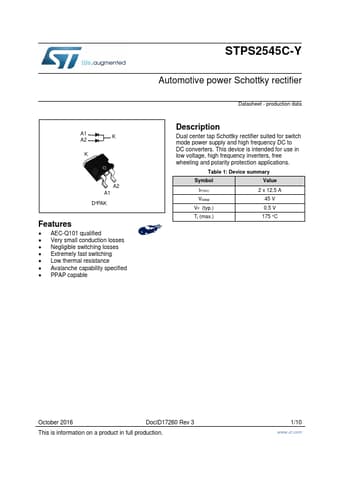

STPS2545C-Y Datasheet Preview — Preview of STPS2545C-Y PDF

Datasheet Details

Part number:

STPS2545C-Y

Manufacturer:

STMicroelectronics ↗

File Size:

345.36 KB

Description:

Automotive power Schottky rectifier

Features

* AEC-Q101 qualified
* Very small conduction losses
* Negligible switching losses
* Extremely fast switching
* Low thermal resistance
* Avalanche capability specified
* PPAP capable STPS2545C-Y Automotive power Schottky rectifier Datasheet - production data Descriptio

Applications

* Table 1: Device summary Symbol Value IF(AV) 2 x 12.5 A VRRM 45 V VF (typ. ) Tj (max. ) 0.5 V 175 °C October 2016 DocID17260 Rev 3 This is information on a product in full production. 1/10 www. st. com Characteristics STPS2545C-Y 1 Characteristics Table 2: Absolute ratings (limiting va
