STPS20L60CT, STPS20L60C, Power Schottky rectifier

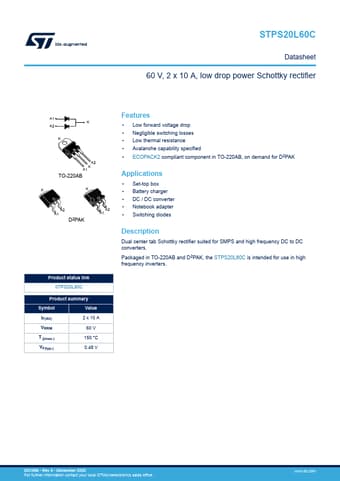

STPS20L60C Datasheet 60 V, 2 x 10 A, low drop power Schottky rectifier A1 K A2 K A2 A1 K TO-220AB K K A2 A1 D2PAK A2 A1 Product status link STP.
Dual center tab Schottky rectifier suited for SMPS and high frequency DC to DC converters.

STPS20L60C-STMicroelectronics.pdf

STPS20L60CT Datasheet Preview — This datasheet PDF includes multiple part numbers: STPS20L60CT, STPS20L60C. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

STPS20L60CT, STPS20L60C

Manufacturer:

STMicroelectronics ↗

File Size:

280.06 KB

Description:

Power Schottky rectifier

Note:

This datasheet PDF includes multiple part numbers: STPS20L60CT, STPS20L60C.
Please refer to the document for exact specifications by model.

Features

* Low forward voltage drop
* Negligible switching losses
* Low thermal resistance
* Avalanche capability specified

Applications

* Set-top box
* Battery charger
* DC / DC converter
* Notebook adapter
