STPS20L40CFP - Low drop power Schottky rectifier

This page provides the datasheet information for the STPS20L40CFP, a member of the STPS20L40C Low drop power Schottky rectifier family.

Description

uc Dual center tap Schottky rectifiers designed for d high frequency switched mode power supplies ro and DC to DC converters.

P These devices are intended for use in low voltage, te high frequency inverters, free-wheeling and Obsole polarity protection applications.

Features

  • ro.
  • Low forward voltage drop meaning very small P conduction losses te.
  • Low dynamic losses as a result of the schottky le barrier o.
  • Insulated package: TO-220FPAB s insulating voltage = 200 V DC b capacitance = 12 pF - O.
  • Avalanche capability specified t(s).

📥 Download Datasheet

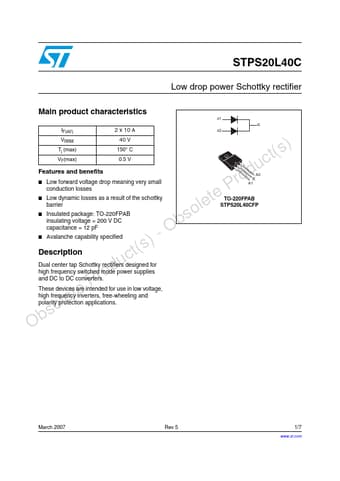

Datasheet preview – STPS20L40CFP
