STPS20L15G, STPS20L15D SCHOTTKY RECTIFIER

STPS20L15G Description

Bulletin PD-20627 rev.C 06/06 www.datasheet4u.com STPS20L15D STPS20L15G SCHOTTKY RECTIFIER 20 Amps IF(AV) = 20Amp VR = 15V Major Ratings and Charact.
Features Units A V A V The Schottky rectifier module has been optimized for ultra low forward voltage drop specifically for the OR-ing of parallel pow.

STPS20L15G Applications

* are in parallel switching power supplies, converters, reverse battery protection, and redundant power subsystems. 125°C TJ operation (VR < 5V) Center tap module Optimized for OR-ing applications Ultra low forward voltage drop High frequency operation Guard ring for enhanced ruggedness and long term

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STPS20L15G, STPS20L15D. Please refer to the document for exact specifications by model.

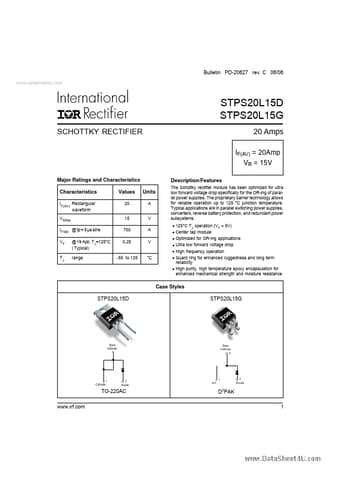

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STPS20L15G, STPS20L15D
Manufacturer
International Rectifier
File Size
311.02 KB
Datasheet
STPS20L15D_InternationalRectifier.pdf
Description
SCHOTTKY RECTIFIER
Note
This datasheet PDF includes multiple part numbers: STPS20L15G, STPS20L15D.
Please refer to the document for exact specifications by model.
