STPS30L60CW SCHOTTKY RECTIFIER

STPS30L60CW Description

Bulletin PD-20625 rev.A 10/06 SCHOTTKY RECTIFIER STPS30L60CW 30 Amp IF(AV) = 30Amp VR = 60V Major Ratings and Characteristics Characteristics V.
Features The STPS30L60CW center tap Schottky rectifier has been optimized for very low forward voltage drop, with moderate leakage.

STPS30L60CW Applications

* are in switching power supplies, converters, free-wheeling diodes, and reverse battery protection. 150° C TJ operation Center tap TO-247 package High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance Very low forward voltage drop High frequency ope

📥 Download Datasheet

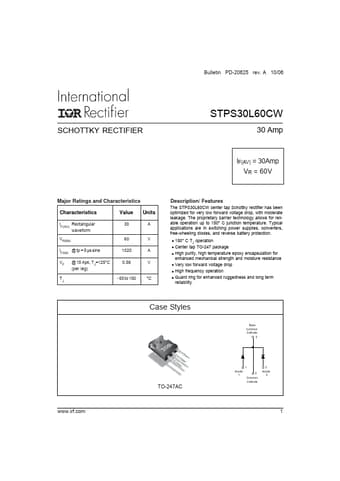

Preview of STPS30L60CW PDF
datasheet Preview Page 2 datasheet Preview Page 3
