STP4LN80K5 - N-channel Power MOSFET

STP4LN80K5 Description

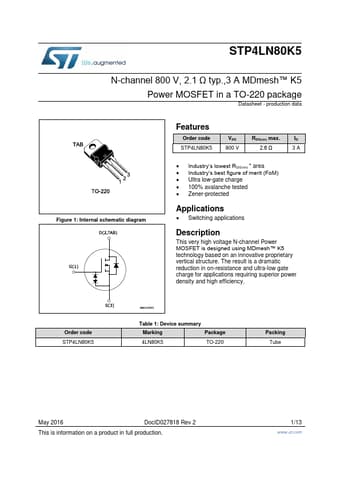

STP4LN80K5 N-channel 800 V, 2.1 Ω typ.,3 A MDmesh™ K5 Power MOSFET in a TO-220 package Datasheet - production data Figure 1: Internal schematic diag.
This very high voltage N-channel Power MOSFET is designed using MDmesh™ K5 technology based on an innovative proprietary vertical structure.

STP4LN80K5 Features

* Order code STP4LN80K5 VDS 800 V RDS(on) max. 2.6 Ω ID 3A
* Industry’s lowest RDS(on)
* area
* Industry’s best figure of merit (FoM)
* Ultra low-gate charge
* 100% avalanche tested
