STP40NF10L N-CHANNEL POWER MOSFET

STP40NF10L Description

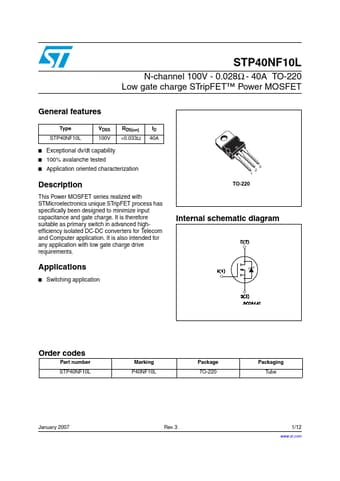

N-CHANNEL 100V - 0.028Ω - 40A TO-220 LOW GATE CHARGE STripFET™ POWER MOSFET TYPE STP40NF10L s s s s STP40NF10L VDSS 100 V RDS(on) < 0.033 Ω ID 40 .
This Power Mosfet series realized with STMicroelectronics unique STripFET process has specifically been designed to minimize input capacitance and gat.

STP40NF10L Applications

* s HIGH-EFFICIENCY DC-DC CONVERTERS s UPS AND MOTOR CONTROL s AUTOMOTIVE INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID ID IDM (q) PTOT EAS (1) Tstg Tj Parameter Drain-source Voltage (VGS = 0) Drain-gate Voltage (RGS = 20 kΩ) Gate- source Voltage Drain Current (continuos
