STP40N60M2 N-CHANNEL MOSFET

STP40N60M2 Description

STB40N60M2, STP40N60M2, STW40N60M2 N-channel 600 V, 0.078 Ω typ., 34 A MDmesh II Plus™ low Qg 2 Power MOSFETs in D PAK, TO-220 and TO-247 packages Dat.
 6  AM01476v1 These devices are N-channel Power MOSFETs developed using a new generation of MDmesh™ technology: MDmesh II Plus™ low Qg.

STP40N60M2 Features

* Order codes VDS @ TJmax RDS(on) max ID STB40N60M2 STP40N60M2 650 V 0.088 Ω 34 A STW40N60M2
* Extremely low gate charge
* Lower RDS(on) x area vs previous generation
* Low gate input resistance
* 100% avalanche tested
* Zener-protected Figure 1. Internal

STP40N60M2 Applications

* Switching applications

📥 Download Datasheet

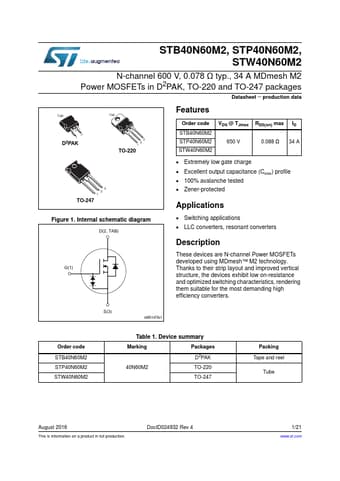

Preview of STP40N60M2 PDF
datasheet Preview Page 2 datasheet Preview Page 3
