STP40NF12 N-CHANNEL POWER MOSFET

STP40NF12 Description

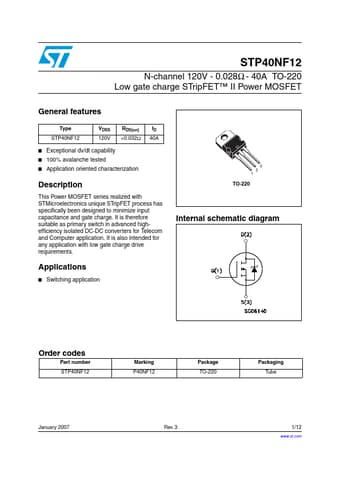

STP40NF12 N-CHANNEL 120V - 0.028Ω - 40A TO-220 LOW GATE CHARGE STripFET™ II POWER MOSFET TYPE STP40NF12 s s s s VDSS 120 V RDS(on) < 0.032 Ω ID 40 .
This Power MOSFET series realized with STMicroelectronics unique STripFET process has specifically been designed to minimize input capacitance and gat.

STP40NF12 Applications

* HIGH-EFFICIENCY DC-DC CONVERTERS s UPS AND MOTOR CONTROL s ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID ID IDM ( ) PTOT dv/dt (1) EAS (2) Tstg Tj Parameter Drain-source Voltage (VGS = 0) Drain-gate Voltage (RGS = 20 kΩ) Gate- source Voltage Drain Current (continuous) at TC = 25°C Drain Current (
