STP45N10 - N-Channel Power MOS Transistor

📥 Download Datasheet

Datasheet preview – STP45N10

Datasheet Details

Part number STP45N10
Manufacturer STMicroelectronics
File Size 455.79 KB
Description N-Channel Power MOS Transistor
Datasheet download datasheet STP45N10 Datasheet
Additional preview pages of the STP45N10 datasheet.

📁 Similar Datasheet

  • STP45N10F7 - N-CHANNEL POWER MOSFET (STMicroelectronics)
  • STP45N10F7 - N-Channel MOSFET (INCHANGE)
  • STP45N40DM2AG - N-channel Power MOSFET (STMicroelectronics)
  • STP45N60DM2AG - N-channel Power MOSFET (STMicroelectronics)
  • STP45N60DM6 - N-CHANNEL MOSFET (STMicroelectronics)
  • STP45N65M5 - N-channel Power MOSFET (STMicroelectronics)
  • STP45NF06 - N-Channel MOSFET (INCHANGE)
  • STP45L01F - N-Channel Enhancement Mode Field Effect Transistor (SamHop)
  • STP400N4F6 - N-channel Power MOSFET (STMicroelectronics)
  • STP40N06 - N-CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTOR (STMicroelectronics)
Other Datasheets by ST Microelectronics

Full PDF Text Transcription

Click to expand full text

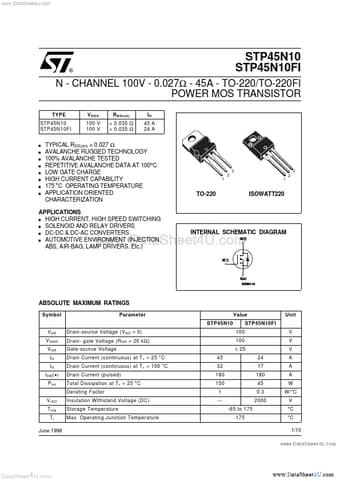

www.DataSheet4U.com ® STP45N10 STP45N10FI N - CHANNEL 100V - 0.027Ω - 45A - TO-220/TO-220FI POWER MOS TRANSISTOR TYPE STP45N10 STP45N10FI V DSS 100 V 100 V R DS(on) < 0.035 Ω < 0.035 Ω ID 45 A 24 A s s s s s s s s TYPICAL RDS(on) = 0.027 Ω AVALANCHE RUGGED TECHNOLOGY 100% AVALANCHE TESTED REPETITIVE AVALANCHE DATA AT 100oC LOW GATE CHARGE HIGH CURRENT CAPABILITY 175 oC OPERATING TEMPERATURE APPLICATION ORIENTED CHARACTERIZATION 3 1 2 1 2 3 TO-220 ISOWATT220 APPLICATIONS HIGH CURRENT, HIGH SPEED SWITCHING s SOLENOID AND RELAY DRIVERS s DC-DC & DC-AC CONVERTERS s AUTOMOTIVE ENVIRONMENT (INJECTION, ABS, AIR-BAG, LAMP DRIVERS. Etc.) s www.DataSheet4U.
