STP30NS15LFP Datasheet - STMicroelectronics

STP30NS15LFP N-CHANNEL Power MOSFET

Using the latest high voltage MESH OVERLAY™ process, STMicroelectronics has designed an advanced family of power MOSFETs with outstanding performances. The new patent pending strip layout coupled with the Company’s proprietary edge termination structure, gives the lowest RDS(on) per area, exceptiona.

STP30NS15LFP Datasheet (242.17 KB)

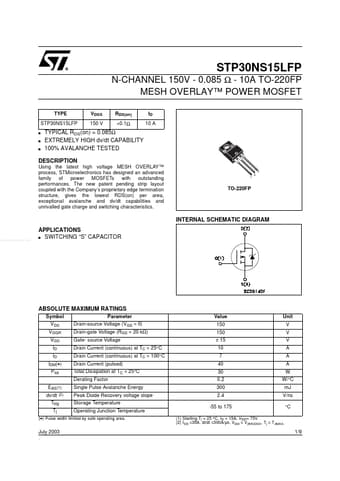

Preview of STP30NS15LFP PDF
STP30NS15LFP Datasheet Preview Page 2 STP30NS15LFP Datasheet Preview Page 3

Datasheet Details

Part number:

STP30NS15LFP

Manufacturer:

STMicroelectronics ↗

File Size:

242.17 KB

Description:

N-channel power mosfet.
