STP30NF20 - N-Channel MOSFET

Features

  • With TO-220 packaging.
  • High speed switching.
  • Very high commutation ruggedness.
  • Easy to use.
  • 100% avalanche tested.
  • Minimum Lot-to-Lot variations for robust device performance and reliable operationz.

📥 Download Datasheet

📁 Similar Datasheet

  • STP30NF20 - N-channel Power MOSFET (STMicroelectronics)
  • STP30NF10 - N-CHANNEL POWER MOSFET (ST Microelectronics)
  • STP30NF10FP - N-CHANNEL Power MOSFET (STMicroelectronics)
  • STP30N05 - N - CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTOR (ST Microelectronics)
  • STP30N05FI - N-CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTOR (STMicroelectronics)
  • STP30N06 - N-CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTOR (STMicroelectronics)
  • STP30N06FI - N - CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTOR (ST Microelectronics)
  • STP30N10F7 - N-CHANNEL POWER MOSFET (STMicroelectronics)
  • STP30N65DM6AG - Automotive-grade N-channel Power MOSFET (STMicroelectronics)
  • STP30N65M5 - N-CHANNEL POWER MOSFET (STMicroelectronics)
Other Datasheets by INCHANGE

Full PDF Text Transcription

Click to expand full text

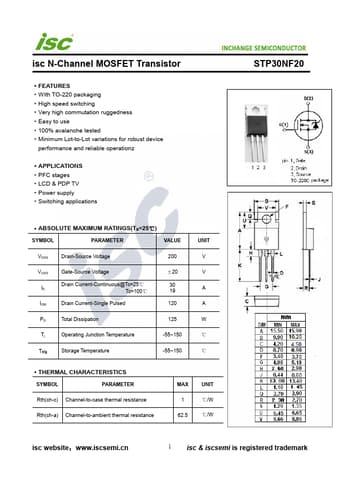

isc N-Channel MOSFET Transistor ·FEATURES ·With TO-220 packaging ·High speed switching ·Very high commutation ruggedness ·Easy to use ·100% avalanche tested ·Minimum Lot-to-Lot variations for robust device performance and reliable operationz ·APPLICATIONS ·PFC stages ·LCD & PDP TV ·Power supply ·Switching applications INCHANGE Semiconductor STP30NF20 ·ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 200 VGSS ID IDM Gate-Source Voltage Drain Current-Continuous@Tc=25℃ Tc=100℃ Drain Current-Single Pulsed ±20 30 19 120 PD Total Dissipation 125 Tj Operating Junction Temperature -55~150 Tstg Storage Temperature -55~150 UNIT V V A A W ℃ ℃ ·THERMAL CHARACTERISTICS SYMBOL PARAMETER Rth(ch-c) Channel-to-case thermal resistance Rth(ch-a) Chan
