STP30N65DM6AG - Automotive-grade N-channel Power MOSFET

Description

This high-voltage N-channel Power MOSFET is part of the MDmesh DM6 fastrecovery diode series.

Features

  • Order code STP30N65DM6AG VDS 650 V RDS(on) max. 115 mΩ ID 28 A.
  • AEC-Q101 qualified.
  • Fast-recovery body diode.
  • Lower RDS(on) per area vs previous generation.
  • Low gate charge, input capacitance and resistance.
  • 100% avalanche tested.
  • Extremely high dv/dt ruggedness.
  • Zener-protected.

📥 Download Datasheet

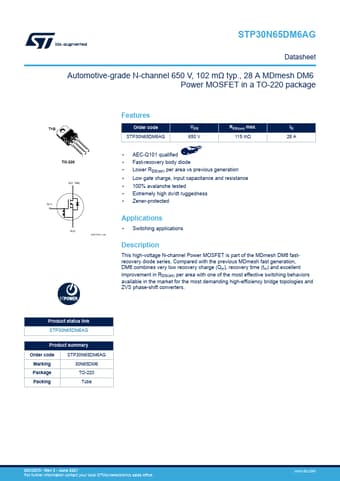

Datasheet preview – STP30N65DM6AG

Datasheet Details

Part number STP30N65DM6AG
Manufacturer STMicroelectronics
File Size 231.21 KB
Description Automotive-grade N-channel Power MOSFET
Datasheet download datasheet STP30N65DM6AG Datasheet
Additional preview pages of the STP30N65DM6AG datasheet.

📁 Similar Datasheet

  • STP30N65M5 - N-Channel MOSFET (INCHANGE)
  • STP30N05 - N - CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTOR (ST Microelectronics)
  • STP30N06FI - N - CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTOR (ST Microelectronics)
  • STP30N10F7 - N-Channel MOSFET (INCHANGE)
  • STP30NE03L - N - CHANNEL POWER MOSFET (ST Microelectronics)
  • STP30NE03LFP - N - CHANNEL POWER MOSFET (ST Microelectronics)
  • STP30NE06 - N - CHANNEL POWER MOSFET (ST Microelectronics)
  • STP30NF10 - N-CHANNEL POWER MOSFET (ST Microelectronics)
  • STP30NF10 - N-Channel MOSFET (INCHANGE)
  • STP30NF10FP - N-Channel MOSFET (INCHANGE)
Other Datasheets by STMicroelectronics

Full PDF Text Transcription

Click to expand full text
STP30N65DM6AG Datasheet Automotive-grade N-channel 650 V, 102 mΩ typ., 28 A MDmesh DM6 Power MOSFET in a TO-220 package TAB TO-220 1 23 D(2, TAB) G(1) S(3) AM01476v1_tab Features Order code STP30N65DM6AG VDS 650 V RDS(on) max. 115 mΩ ID 28 A • AEC-Q101 qualified • Fast-recovery body diode • Lower RDS(on) per area vs previous generation • Low gate charge, input capacitance and resistance • 100% avalanche tested • Extremely high dv/dt ruggedness • Zener-protected Applications • Switching applications Description This high-voltage N-channel Power MOSFET is part of the MDmesh DM6 fastrecovery diode series.
