STP30NF10 N-CHANNEL POWER MOSFET

STP30NF10 Description

STB30NF10 STP30NF10 - STP30NF10FP N-channel 100V - 0.038Ω - 35A - D2PAK/TO-220/TO-220FP Low gate charge STripFET™ II Power MOSFET General .
This Power MOSFET is the latest development of STMicroelectronis unique "Single Feature Size™" strip-based process.

STP30NF10 Features

* Type STB30NF10 STP30NF10 STP30NF10FP VDSS 100V 100V 100V RDS(on)

STP30NF10 Applications

* Switching application 3 2 1 TO-220 3 1 D2PAK 3 2 1 TO-220FP Internal schematic diagram Order codes Sales type STB30NF10T4 STP30NF10 STP30NF10FP Marking B30NF10 P30NF10 P30NF10FP Package D2PAK TO-220 TO-220FP Packaging Tape & reel Tube Tube June 2006 Rev 2 1/16 www. st. com 16 Conten

📥 Download Datasheet

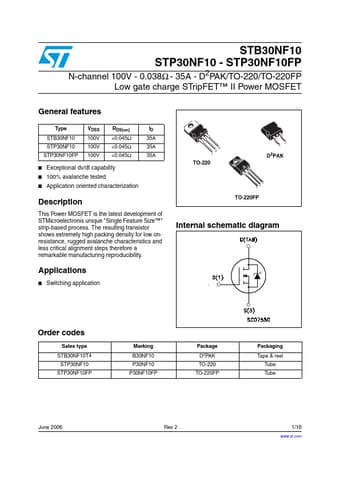

Preview of STP30NF10 PDF
datasheet Preview Page 2 datasheet Preview Page 3
