STMUX3040 - Octal SPDT high bandwidth signal switch

STMicroelectronics

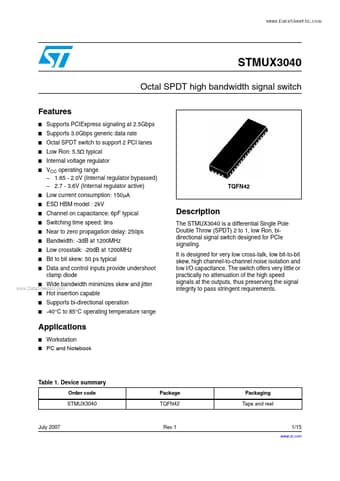

STMUX3040 Datasheet Preview — Preview of STMUX3040 PDF

Datasheet Details

Part number	STMUX3040
Manufacturer	STMicroelectronics ↗
File Size	227.56 KB
Description	Octal SPDT high bandwidth signal switch
Datasheet	STMUX3040_STMicroelectronics.pdf

STMUX3040 Product details

Description

The STMUX3040 is a differential Single Pole Double Throw (SPDT) 2 to 1, low Ron, bidirectional signal switch designed for PCIe signaling. Wide bandwidth minimizes www.DataSheet4U.com Hot ins

Features

Supports PCIExpress signaling at 2.5Gbps Supports 3.0Gbps generic data rate Octal SPDT switch to support 2 PCI lanes Low Ron: 5.5Ω typical Internal voltage regulator VCC operating range.
1.65 - 2.0V (Internal regulator bypassed).
2.7 - 3.6V (Internal regulator active) Low current consumption: 150µA ESD HBM model : 2kV Channel on capacitance: 6pF typical Switching time speed: 9ns Near to zero propagation delay: 250ps Bandwidth: -3dB at 1200MH.
