STL260N4F7 - N-channel Power MOSFET

STL260N4F7 Description

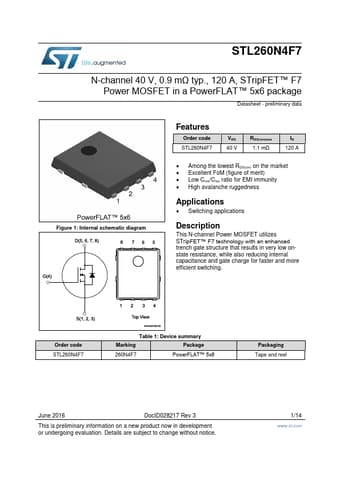

STL260N4F7 N-channel 40 V, 0.9 mΩ typ., 120 A, STripFET™ F7 Power MOSFET in a PowerFLAT™ 5x6 package Datasheet - preliminary data Figure 1: Internal.
This N-channel Power MOSFET utilizes STripFET™ F7 technology with an enhanced trench gate structure that results in very low onstate resistance, while.

STL260N4F7 Features

* Order code STL260N4F7 VDS 40 V RDS(on)max 1.1 mΩ ID 120 A
* Among the lowest RDS(on) on the market
* Excellent FoM (figure of merit)
* Low Crss/Ciss ratio for EMI immunity
