STL25A45N, TRENCH SCHOTTKY BARRIER DIODE

R TRENCH SCHOTTKY BARRIER DIODE STL25A45N MAIN CHARACTERISTICS IF(AV) VRRM TJmax IFSM VF(max)@20A 25A 45 V 200 ℃ 400 A 0.46V （@Tj=125℃） Pack.

STL25A45N-JILINSINO.pdf

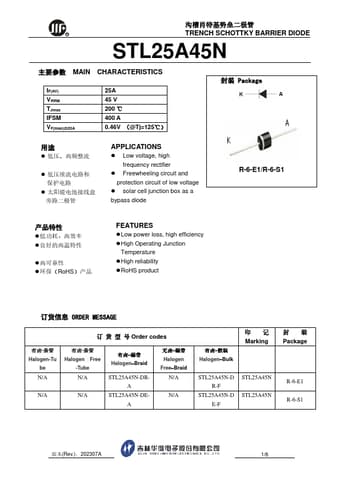

STL25A45N Datasheet Preview — Preview of STL25A45N PDF

Datasheet Details

Part number:

STL25A45N

Manufacturer:

JILIN SINO

File Size:

443.90 KB

Description:

TRENCH SCHOTTKY BARRIER DIODE

Features

* Low power loss, high efficiency
* High Operating Junction Temperature
* High reliability
* RoHS product ORDER MESSAGE Order codes - Halogen-Tu be N/A N/A - Halogen Free -Tube N/A N/A - Halogen-Braid STL25A45N-DRA STL25A45N-DEA - Halogen Free-Braid N/A N/A - Halogen-Bulk M

Applications

* Low voltage, high frequency rectifier
* Freewheeling circuit and protection circuit of low voltage
* solar cell junction box as a bypass diode R-6-E1/R-6-S1
* ，
