STL2545N, TRENCH SCHOTTKY BARRIER DIODE

R TRENCH SCHOTTKY BARRIER DIODE STL2545N MAIN CHARACTERISTICS Package IF(AV) VRRM TJmax IFSM VF(max)@20A 25A 45 V 200 ℃ 400 A 0.46V （@Tj=125.

STL2545N-JILINSINO.pdf

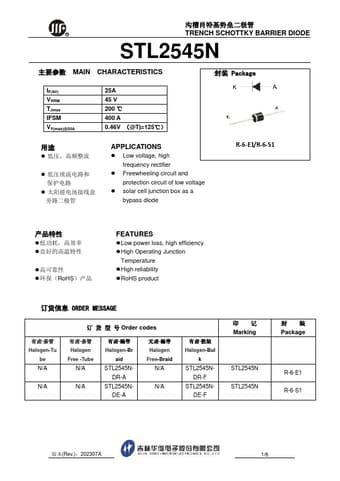

STL2545N Datasheet Preview — Preview of STL2545N PDF

Datasheet Details

Part number:

STL2545N

Manufacturer:

JILIN SINO

File Size:

400.48 KB

Description:

TRENCH SCHOTTKY BARRIER DIODE

Features

* Low power loss, high efficiency
* High Operating Junction Temperature
* High reliability
* RoHS product ORDER MESSAGE - Halogen-Tu be N/A N/A Order codes - Halogen Free -Tube N/A N/A - Halogen-Br aid STL2545N- DR-A STL2545N- DE-A - Halogen Free-Braid N/A N/A - Halogen-Bul k

Applications

* Low voltage, high frequency rectifier
* Freewheeling circuit and protection circuit of low voltage
* solar cell junction box as a bypass diode R-6-E1/R-6-S1
* ，
