STL25N60M2-EP N-channel Power MOSFET

STL25N60M2-EP Description

STL25N60M2-EP N-channel 600 V, 0.184 Ω typ., 16 A MDmesh™ M2 EP Power MOSFET in a PowerFLAT™ 8x8 HV package Datasheet - production data .
This device is an N-channel Power MOSFET developed using MDmesh™ M2 EP enhanced performance technology.

STL25N60M2-EP Features

* Order code VDS @ TJmax RDS(on) max. ID 5 STL25N60M2-EP 650 V 0.206 Ω 16 A 4 32 1 PowerFLAT™ 8x8 HV Figure 1: Internal schematic diagram
* Extremely low gate charge
* Excellent output capacitance (COSS) profile
* Very low turn-off switching losses
* 100% avalanche tested

STL25N60M2-EP Applications

* Switching applications

📥 Download Datasheet

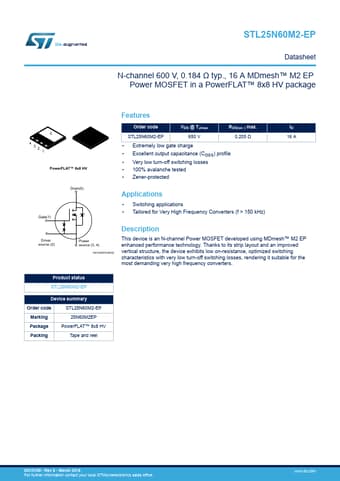

Preview of STL25N60M2-EP PDF
