STI7200 - Triple display / HDTV set-top box / dual decoder

STMicroelectronics

The STI7200 by STMicroelectronics is a Triple display / HDTV set-top box / dual decoder. Below is the official datasheet preview.

📥 Download Datasheet

STI7200 Triple display / HDTV set-top box / dual decoder by STMicroelectronics - Datasheet Preview — Official preview page of the **STI7200** Triple display / HDTV set-top box / dual decoder datasheet (STMicroelectronics).

Datasheet Details

Part number	STI7200
Manufacturer	STMicroelectronics
File Size	238.48 KB
Description	Triple display / HDTV set-top box / dual decoder
Datasheet	STI7200_STMicroelectronics.pdf

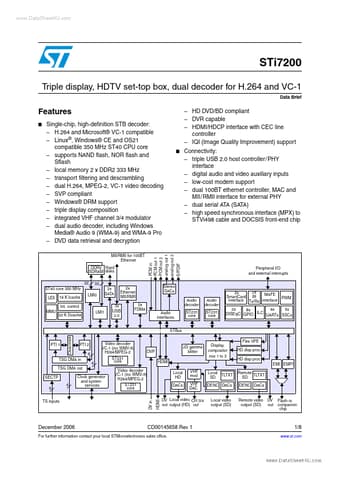

Additional preview pages of the STI7200 datasheet.

STI7200 Product details

Description

STi7200 1 Description The STi7200 is a new generation, high-definition set-top box/DVD decoder chip, and provides very high performance for low-cost HD systems.With enhanced performance over the STx7109, it includes both Windows Media Video 9 and H.264 video decoders for new, low bitrate applications.The STi7200 is able to decode two HD programs.Based on the STBus architecture, this system-on-chip is a full back-end processor for digital terrestrial, satellite, cable and IP high-definition

Features

Single-chip, high-definition STB decoder:.
H.264 and Microsoft® VC-1 compatible.
Linux®, Windows® CE and OS21 compatible 350 MHz ST40 CPU core.
supports NAND flash, NOR flash and Sflash.
local memory 2 x DDR2 333 MHz.
transport filtering and descrambling.
dual H.264, MPEG-2, VC-1 video decoding.
SVP compliant.
Windows® DRM support.
triple display composition.
integrated VHF channel 3/4 modulator.
