STI11NM60ND N-Channel MOSFET

STI11NM60ND Description

isc N-Channel MOSFET Transistor .

STI11NM60ND Features

* Drain Current
* ID= 6.3A@ TC=25℃
* Drain Source Voltage- : VDSS= 600V(Min)
* Static Drain-Source On-Resistance : RDS(on) = 0.45Ω(Max)
* 100% avalanche tested

STI11NM60ND Applications

* Switching application ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 600 V VGS Gate-Source Voltage-Continuous ±25 V ID Drain Current-Continuous 6.3 A IDM Drain Current-Single Pluse 40 A PD Total Dissipation @TC=25℃ 90 W TJ Max.

📥 Download Datasheet

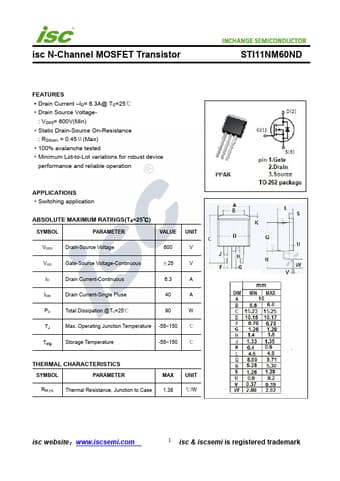

Preview of STI11NM60ND PDF
datasheet Preview Page 2

Datasheet Details

Part number
STI11NM60ND
Manufacturer
INCHANGE
File Size
309.54 KB
Datasheet
STI11NM60ND-INCHANGE.pdf
Description
N-Channel MOSFET
