STI20N65M5 - N-channel Power MOSFET

STMicroelectronics

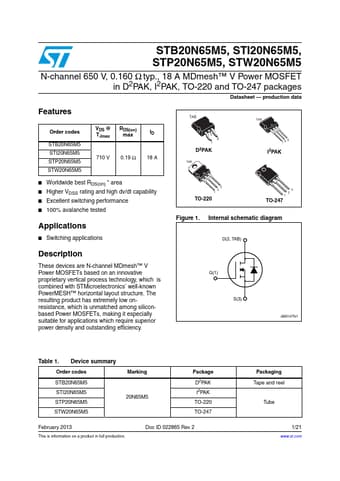

STI20N65M5 Datasheet Preview — Preview of STI20N65M5 PDF

Datasheet Details

Part number	STI20N65M5
Manufacturer	STMicroelectronics ↗
File Size	786.33 KB
Description	N-channel Power MOSFET
Datasheet	STI20N65M5-STMicroelectronics.pdf

STI20N65M5 Product details

Description

These devices are N-channel MDmesh™ V Power MOSFETs based on an innovative proprietary vertical process technology, which is combined with STMicroelectronics’ well-known PowerMESH™ horizontal layout structure.

Features

Order codes STB20N65M5 STI20N65M5 STP20N65M5 STW20N65M5 VDS @ TJmax RDS(on) max ID 710 V 0.19 Ω 18 A.
Worldwide best RDS(on).
area.
Higher VDSS rating and high dv/dt capability.
Excellent switching performance.
100% avalanche tested.
