STGB14NC60KD Datasheet - STMicroelectronics

STGB14NC60KD, 600V short-circuit rugged IGBT

STGB14NC60KD STGF14NC60KD, STGP14NC60KD 14 A, 600 V - short-circuit rugged IGBT .
This IGBT utilizes the advanced PowerMESH™ process resulting in an excellent trade-off between switching performance and low on-state behavior.

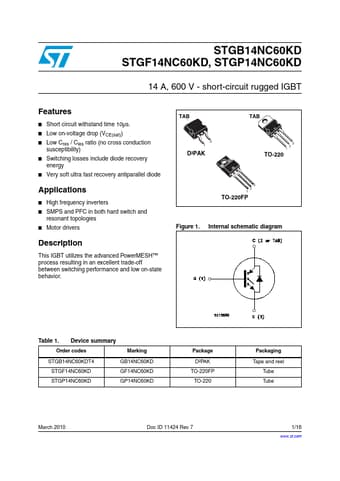

STGB14NC60KD-STMicroelectronics.pdf

STGB14NC60KD Datasheet Preview — Preview of STGB14NC60KD PDF

Datasheet Details

Part number:

STGB14NC60KD

Manufacturer:

STMicroelectronics ↗

File Size:

437.48 KB

Description:

600V short-circuit rugged IGBT

Features

* Short circuit withstand time 10µs.
* Low on-voltage drop (VCE(sat))
* Low Cres / Cies ratio (no cross conduction susceptibility)
* Switching losses include diode recovery energy

Applications

* High frequency inverters
* SMPS and PFC in both hard switch and resonant topologies
