STGB14NC60K N-CHANNEL IGBT

STGB14NC60K Description

www.DataSheet4U.com STGB14NC60K STGD14NC60K N-channel 14A - 600V -DPAK - D2PAK Short circuit rated PowerMESH™ IGBT General .
Using the latest high voltage technology based on a patented strip layout, STMicroelectronics has designed an advanced family of IGBTs, the Power MESH.

STGB14NC60K Features

* Type STGB14NC60K STGD14NC60K
* VCES 600V 600V VCE(sat) (Max)@ 25°C

STGB14NC60K Applications

* with short circuit withstand capability. Internal schematic diagram Applications
* High frequency inverters Motor drivers with short circuit protection Order codes Part number STGB14NC60KT4 STGD14NC60KT4 Marking GB14NC60K GD14NC60K Package D²PAK DPAK Packaging Tape & reel Tape & reel

📥 Download Datasheet

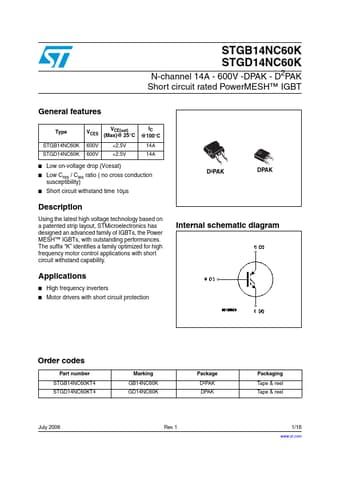

Preview of STGB14NC60K PDF
