STGB10NC60HDT4, STGB10NC60HD 600V 10A IGBT

STGB10NC60HDT4 Description

STGB10NC60HDT4, STGP10NC60HD Datasheet 600 V, 10 A very fast IGBT TAB TAB 3 1 D2PAK TO-220 1 23 C(2, TAB) G(1) E(3) NG1E3C2T .
These devices are very fast IGBTs developed using advanced PowerMESH technology.

STGB10NC60HDT4 Features

* Low on voltage drop (VCE(sat))
* Low Cres / Cies ratio (no cross-conduction susceptibility)

STGB10NC60HDT4 Applications

* High frequency motor controls
* SMPS and PFC in both hard switch and resonant topologies

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STGB10NC60HDT4, STGB10NC60HD. Please refer to the document for exact specifications by model.

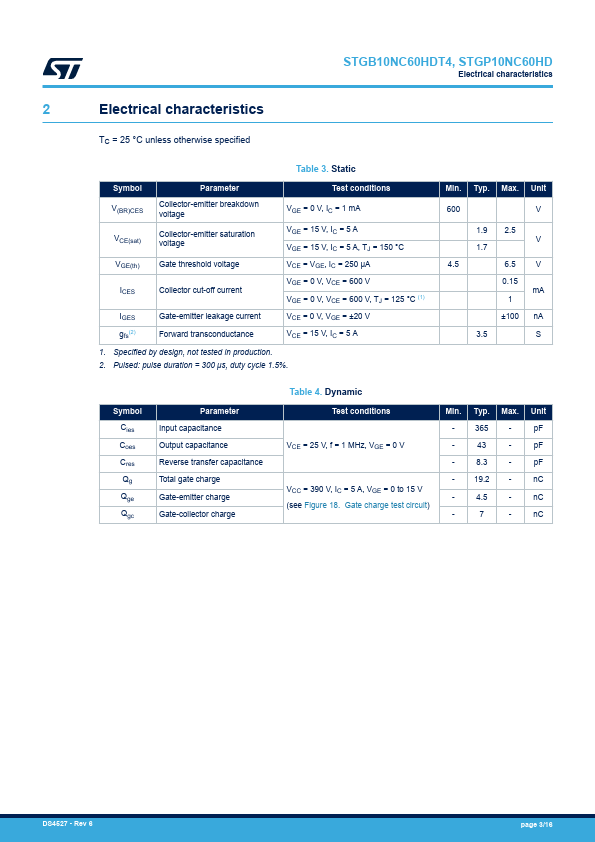

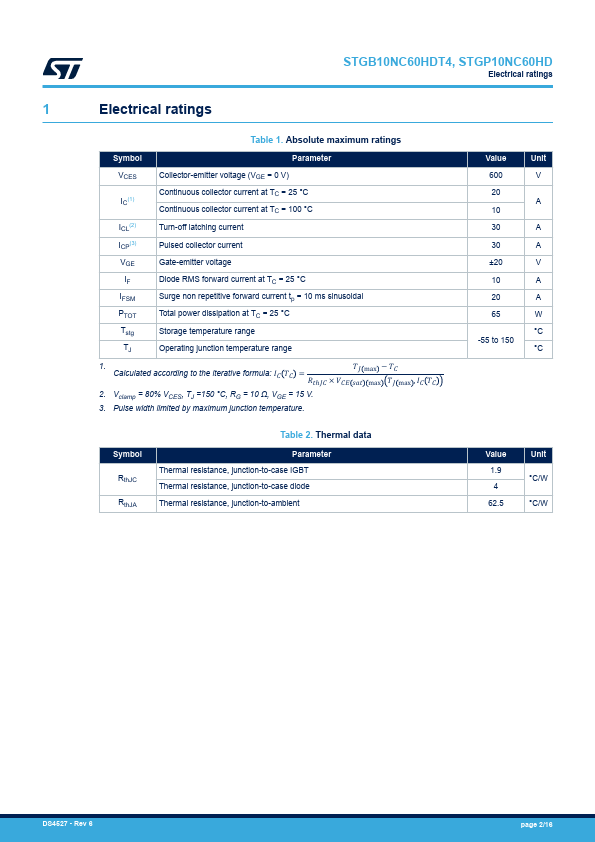

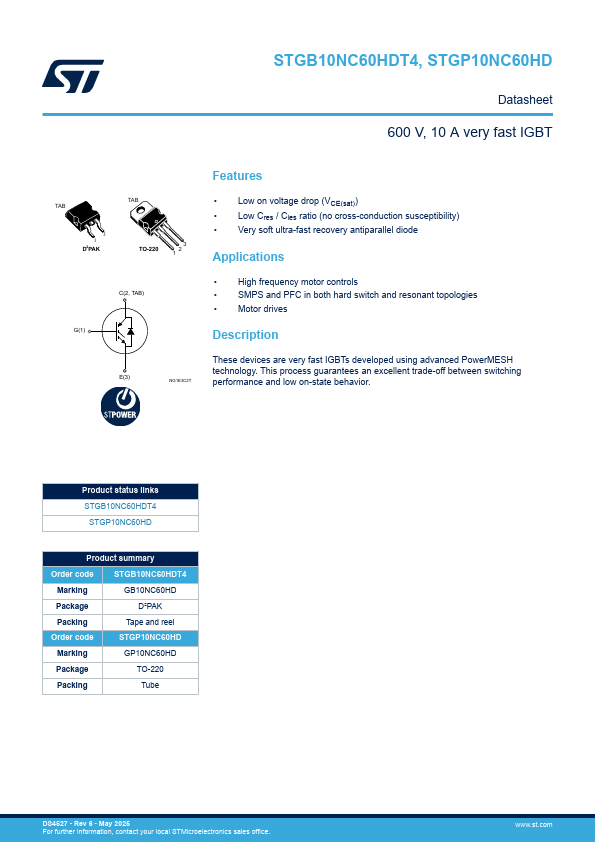

datasheet Preview Page 2 datasheet Preview Page 3
