STB185N55F3 - N-CHANNEL POWER MOSFET

STB185N55F3 Description

STB185N55F3 STP185N55F3 N-channel 55V - 3.2mΩ - 120A - D2PAK/TO-220 STripFET™ Power MOSFET .
This n-channel enhancement mode Power MOSFET is the latest refinement of STMicroelectronics unique “single feature size™” strip-based process with les.

STB185N55F3 Features

* Type STB185N55F3 STP185N55F3 VDSS 55V 55V RDS(on) 3.5mΩ 3.8mΩ ID 120A(1) 120A(1) Pw 330W 330W 1. Value limited by wire bonding
* Ultra low on-resistance

STB185N55F3 Applications

* Switching applications

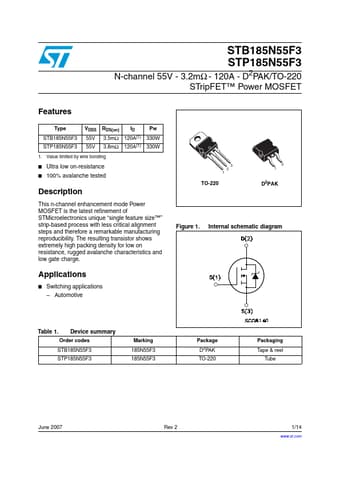

* Automotive 3 2 1 TO-220 3 1 D2PAK Figure 1. Internal schematic diagram Table 1. Device summary Order codes STB185N55F3 STP185N55F3 Marking 185N55F3 185N55F3 Package D2PAK TO-220 Packaging Tape & reel Tube June 2007 Rev 2 1/14 www. st. com 14 Contents
