STB185N55, N-CHANNEL Power MOSFET

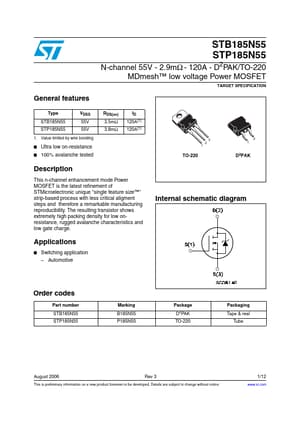

www.DataSheet4U.com STB185N55 STP185N55 N-channel 55V - 2.9mΩ - 120A - D2PAK/TO-220 MDmesh™ low voltage Power MOSFET TARGET SPECIFICATION General fe

Features

* Type STB185N55 STP185N55 VDSS 55V 55V RDS(on) 3.5mΩ 3.8mΩ ID 120A(1) 120A(1) 3 1 2 1. Value limited by wire bonding

Applications

* Switching application
* Automotive Order codes Part number STB185N55 STP185N55 Marking B185N55 P185N55 Package D 2PAK Packaging Tape & reel Tube TO-220 August 2006 Rev 3 1/12 www. st. com 12 This is preliminary information on a new product foreseen to be developed. Details are su
