SGT080R70ILB - 700V 29A PowerGaN transistor

STMicroelectronics

The SGT080R70ILB by STMicroelectronics is a 700V 29A PowerGaN transistor. Below is the official datasheet preview.

📥 Download Datasheet

SGT080R70ILB 700V 29A PowerGaN transistor by STMicroelectronics - Datasheet Preview — Official preview page of the SGT080R70ILB 700V 29A PowerGaN transistor datasheet (STMicroelectronics).

Datasheet Details

Part number	SGT080R70ILB
Manufacturer	STMicroelectronics
File Size	730.64 KB
Description	700V 29A PowerGaN transistor
Datasheet	SGT080R70ILB-STMicroelectronics.pdf

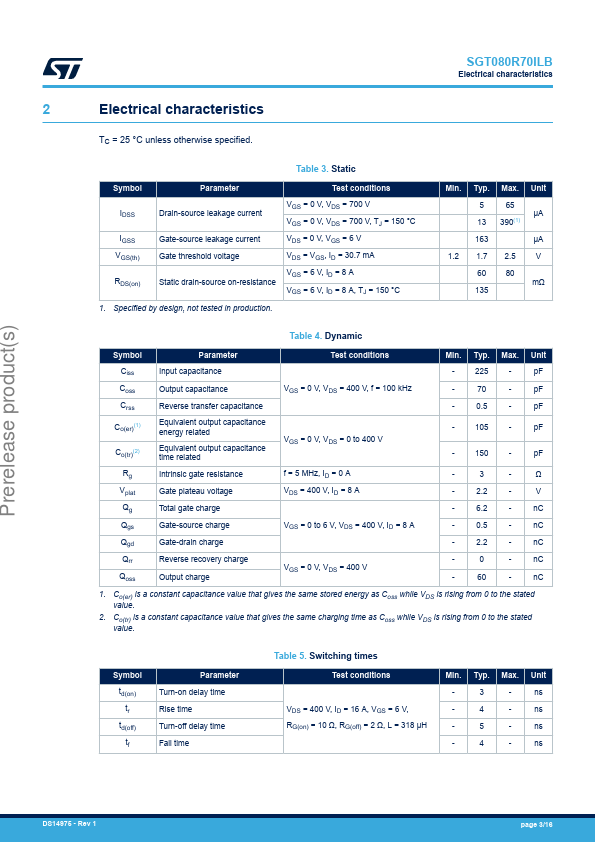

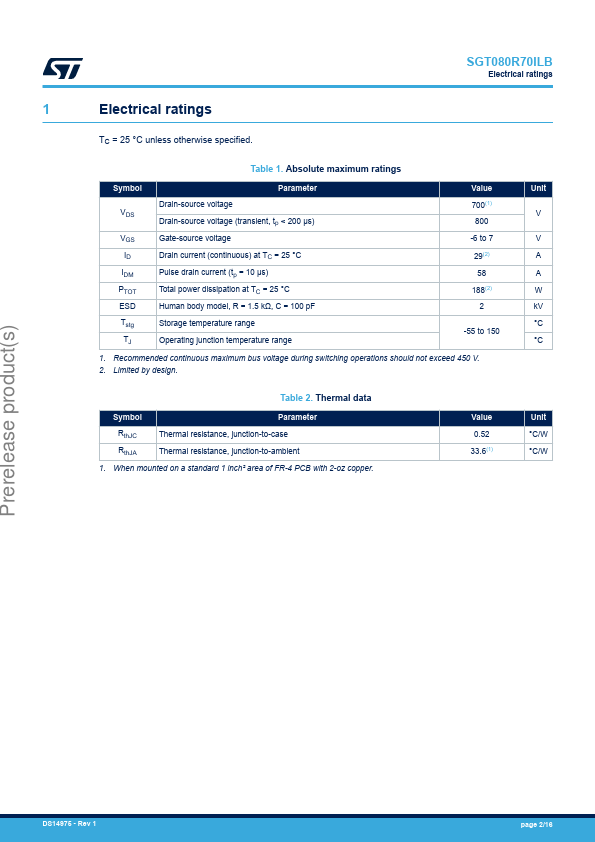

Additional preview pages of the SGT080R70ILB datasheet.

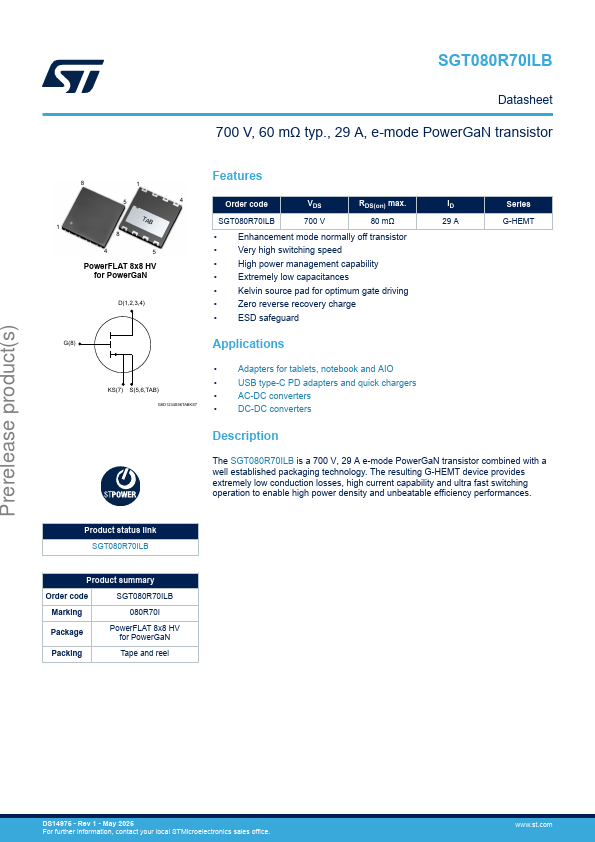

SGT080R70ILB Product details

Description

The SGT080R70ILB is a 700 V, 29 A e-mode PowerGaN transistor combined with a well established packaging technology.

Features

5 4 Order code VDS RDS(on) max. ID TAB 1 8 SGT080R70ILB 700 V 80 mΩ 29 A.
Enhancement mode normally off transistor 4 5 PowerFLAT 8x8 HV for PowerGaN.
Very high switching speed.
High power management capability.
Extremely low capacitances.
Kelvin source pad for optimum gate driving D(1,2,3,4).
Zero reverse recovery charge.
ESD safeguard Series G-HEMT G(8).
