SGT03U13, SGT06U13 - (SGTxxxx) Unidirectional Transient Surge Suppressors

Harris

The SGT03U13 by Harris is a (SGTxxxx) Unidirectional Transient Surge Suppressors. Below is the official datasheet preview.

📥 Download Datasheet

SGT03U13 (SGTxxxx) Unidirectional Transient Surge Suppressors by Harris - Datasheet Preview — Official preview page of the SGT03U13 (SGTxxxx) Unidirectional Transient Surge Suppressors datasheet (Harris).

Datasheet Details

Part number	SGT03U13, SGT06U13
Manufacturer	Harris
File Size	124.17 KB
Description	(SGTxxxx) Unidirectional Transient Surge Suppressors
Datasheet	SGT06U13_Harris.pdf
Note	This datasheet PDF includes multiple part numbers: SGT03U13, SGT06U13. Please refer to the document for exact specifications by model.

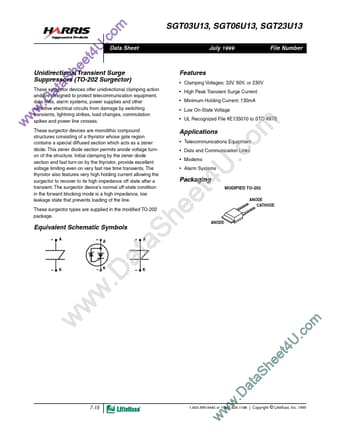

Additional preview pages of the SGT03U13 datasheet.

SGT03U13 Product details

Features

Clamping Voltages: 33V, 60V, or 230V.
High Peak Transient Surge Current.
Minimum Holding Current: 130mA.
Low On-State Voltage.
UL Recognized File #E135010 to STD 497B These surgector devices offer unidirectional clamping action and are designed to protect telecommunication equipment, data links, alarm systems, power supplies and other sensitive electrical circuits from damage by switching transients, lightning strikes, load changes, commutation spik.
