SGT120R65AL - PowerGaN transistor

STMicroelectronics

The SGT120R65AL by STMicroelectronics is a PowerGaN transistor. Below is the official datasheet preview.

📥 Download Datasheet

SGT120R65AL PowerGaN transistor by STMicroelectronics - Datasheet Preview — Official preview page of the SGT120R65AL PowerGaN transistor datasheet (STMicroelectronics).

Datasheet Details

Part number	SGT120R65AL
Manufacturer	STMicroelectronics
File Size	644.89 KB
Description	PowerGaN transistor
Datasheet	SGT120R65AL-STMicroelectronics.pdf
Additional preview pages of the SGT120R65AL datasheet.

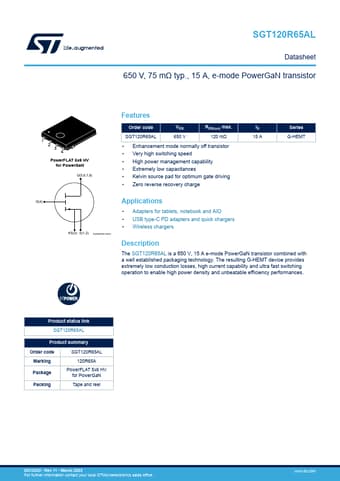

SGT120R65AL Product details

Description

The SGT120R65AL is a 650 V, 15 A e-mode PowerGaN transistor combined with a well established packaging technology.

Features

Order code VDS RDS(on) max. ID SGT120R65AL 650 V 120 mΩ 15 A.
Enhancement mode normally off transistor.
Very high switching speed.
High power management capability.
Extremely low capacitances.
Kelvin source pad for optimum gate driving.
Zero reverse recovery charge Series G-HEMT G(4).
