2STF1550 - Low voltage fast-switching NPN power bipolar transistors

Description

The 2STF1550 and 2STN1550 are NPN transistors manufactured using new “PB-HCD” (Power Bipolar High Current Density) technology.

The resulting transistor shows exceptional high gain performances coupled with very low saturation voltage.

Features

  • Very low collector-emitter saturation voltage High current gain characteristic Fast switching speed Surface mounting devices in medium power SOT-89 and SOT-223 packages In compliance with the 2002/93/EC European Directive 2 2 3.
  • 1 SOT-89 SOT-223.

📥 Download Datasheet

Datasheet preview – 2STF1550

Datasheet Details

Part number 2STF1550
Manufacturer STMicroelectronics
File Size 165.15 KB
Description Low voltage fast-switching NPN power bipolar transistors
Datasheet download datasheet 2STF1550 Datasheet
Additional preview pages of the 2STF1550 datasheet.

📁 Similar Datasheet

  • 2STF1525 - Transistors (ST Microelectronics)
  • 2STF1360 - Low voltage fast-switching NPN power transistors (ST Microelectronics)
  • 2STF2220 - High Gain Low Voltage PNP Power Transistor (ST Microelectronics)
  • 2ST1480 - (2ST1480 / 2ST2480) Complementary power transistors (ST Microelectronics)
  • 2ST2480 - (2ST1480 / 2ST2480) Complementary power transistors (ST Microelectronics)
  • 2ST31A - NPN Transistor (INCHANGE)
  • 2ST501T - NPN Transistor (INCHANGE)
  • 2STA1695 - High power PNP epitaxial planar bipolar transistor (ST Microelectronics)
  • 2STA1962 - High power PNP epitaxial planar bipolar transistor (ST Microelectronics)
  • 2STBN15D100 - NPN Transistor (ST Microelectronics)
Other Datasheets by STMicroelectronics
  • 2STF1340 - Low voltage fast-switching NPN power bipolar transistor
  • 2STF2280 - Low voltage high performance PNP power transistor
  • 2STF2340 - Low voltage fast-switching PNP power transistors
  • 2STF2360 - Low voltage fast-switching PNP power transistors
  • 2ST15300 - Rad-Hard NPN bipolar transistors
  • 2ST2121 - High power PNP epitaxial planar bipolar transistor
  • 2ST31A - Low voltage NPN power transistor
  • 2ST3360K - NPN/PNP transistors

Full PDF Text Transcription

Click to expand full text

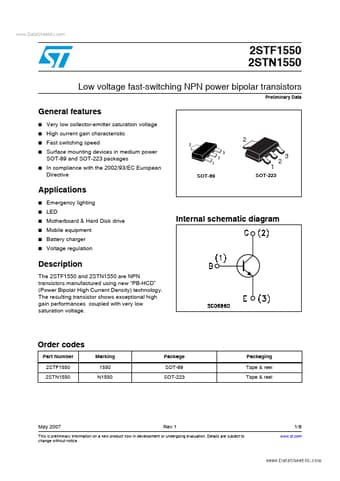

www.DataSheet4U.com 2STF1550 2STN1550 Low voltage fast-switching NPN power bipolar transistors Preliminary Data General features ■ ■ ■ ■ Very low collector-emitter saturation voltage High current gain characteristic Fast switching speed Surface mounting devices in medium power SOT-89 and SOT-223 packages In compliance with the 2002/93/EC European Directive 2 2 3 ■ 1 SOT-89 SOT-223 Applications ■ ■ ■ ■ ■ ■ Emergency lighting LED Motherboard & Hard Disk drive Mobile equipment Battery charger Voltage regulation Internal schematic diagram Description The 2STF1550 and 2STN1550 are NPN transistors manufactured using new “PB-HCD” (Power Bipolar High Current Density) technology. The resulting transistor shows exceptional high gain performances coupled with very low saturation voltage.
